 I have made the following colors, but others colors could be made. Solid - Black, White, Light Blue, Dark Blue, Brown See thru - Clear and Smoked.
Made of 1/8 flat expanded metal with openings of 5/8 by 1 5/8, backed up by 1/4 inch wire cloth. Includes a plastic safety edge guard and stainless steel fasteners

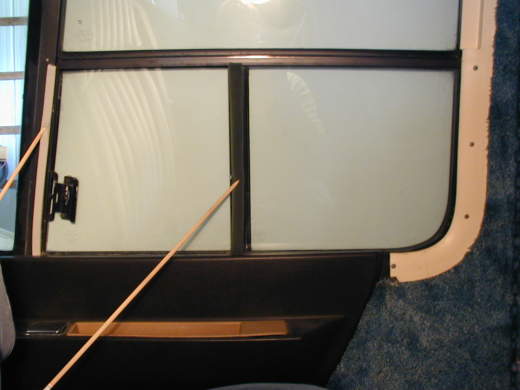

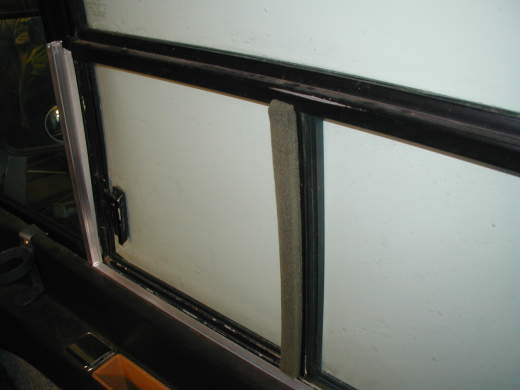

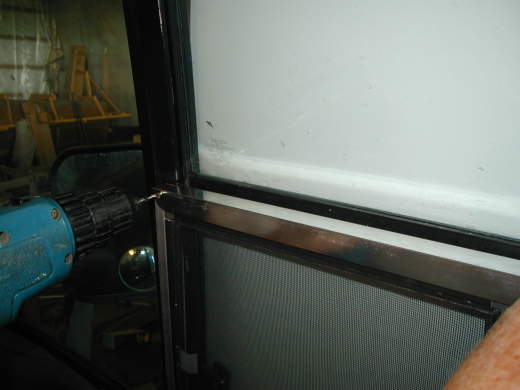

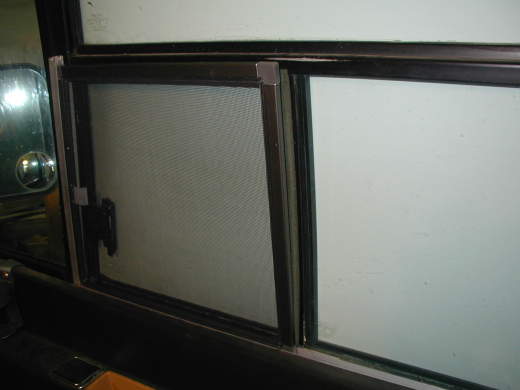

1. Temporarily attach the Wing to the assembled bracket. 2. Center the Wing in the opened window and hold bracket against coach rail, mark the lower mounting hole. 3. Drill a #29 hole one half inch deep and tap using a 8-32 tap. 4. Remove Wing from bracket and attach bracket to coach, then located top hole. Swing bracket aside, drill and tap top hole. 5. Finish mounting bracket to coach as shown in picture (pivot screws should be pointing down). 6. Attach the Wing to the bracket but do not overtighten the wing screws. 7. Adjust pivot screws just tight enough to hold position. |
|
