Sweeet Pea has an 18' A & E Awning installed on her curb
side. (Model # 838000D006)

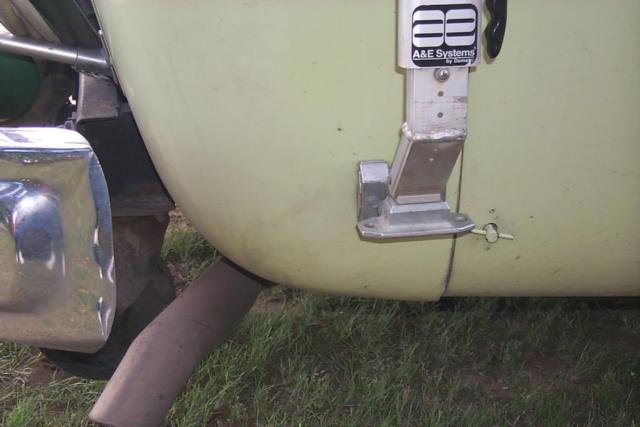

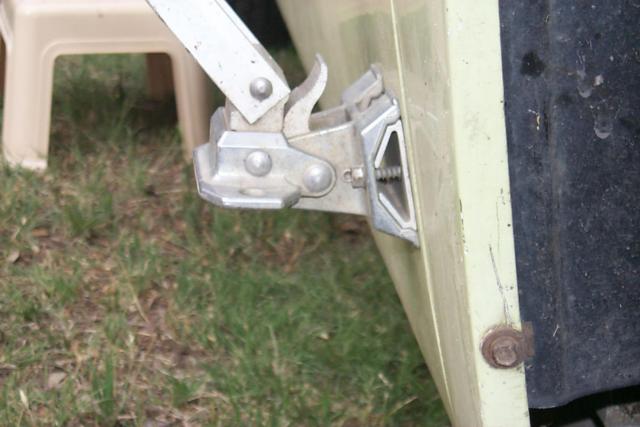

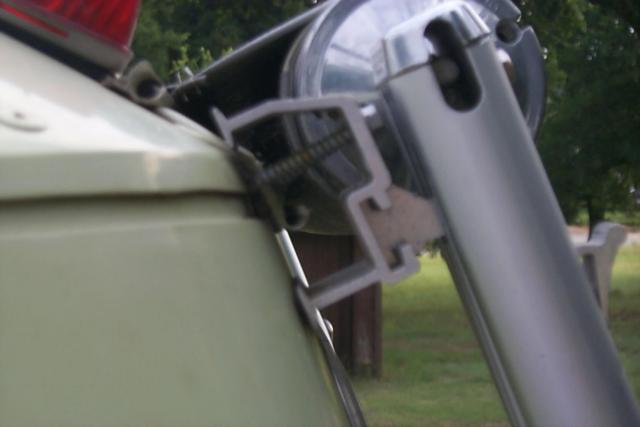

The Lower Rear Bracket is located 3/4" behind the butane
door, and is 8 1/2" up from the bottom if you hang your tape
on the underside body edge and follow the curve up.

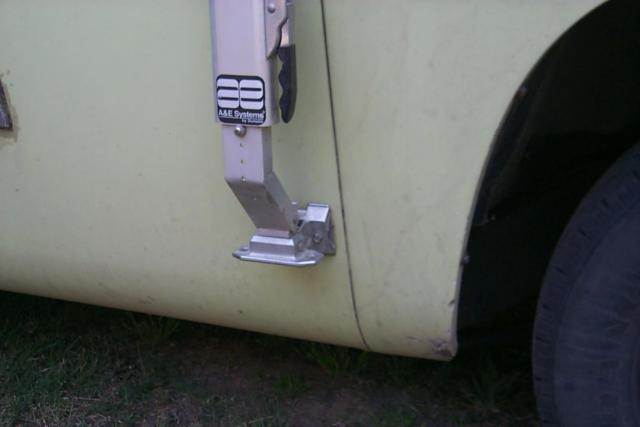

The Lower Front Bracket is located 1/2" behind the front
body seam, 9 1/2 " up from the bottom if you hang your tape
on the underside body edge and follow the curve up.

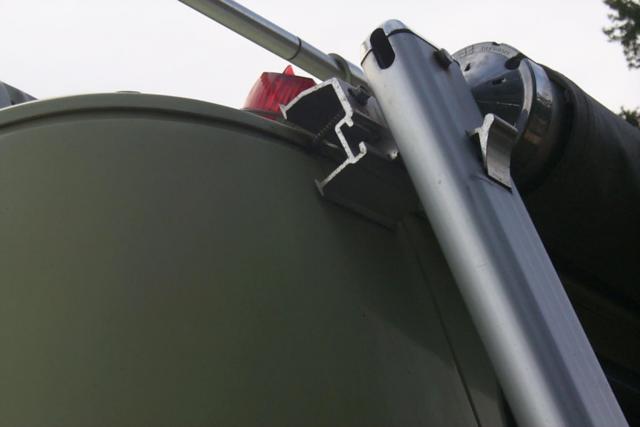

The Top Rear Bracket is located 1 1/2" behind the Gutter.

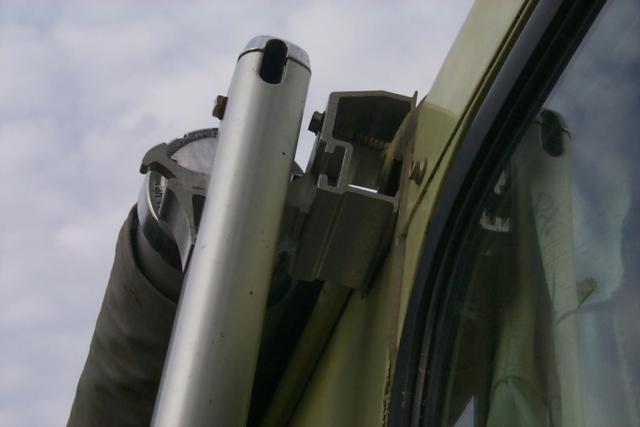

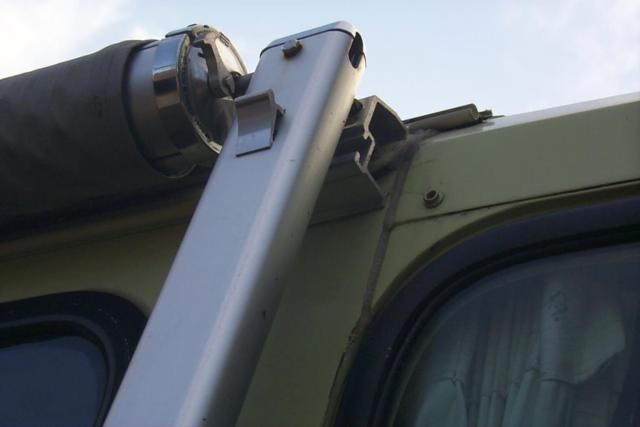

The Top Front Bracket is located 1/4" behind the Front Body
Seam.

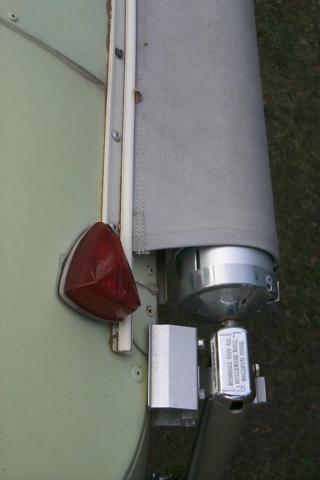

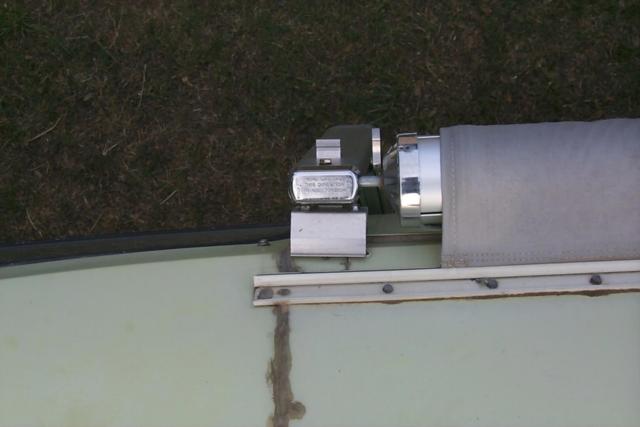

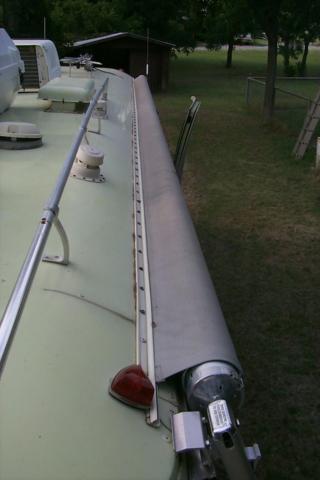

The clamp that holds the tarp to the coach is located right above
the rain gutter. The bolt flange is trimmed off to clear the rear
clearance light.

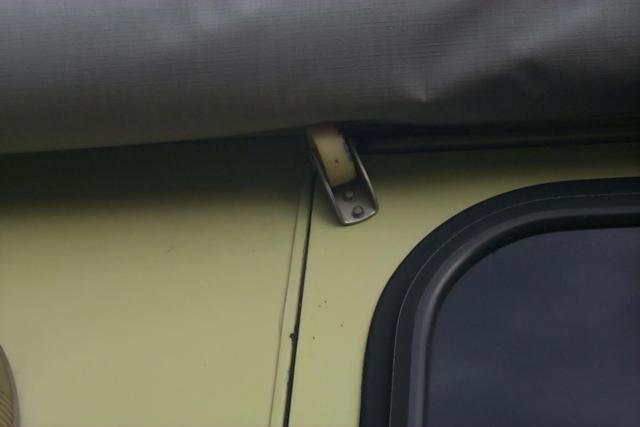

There's a little roller bolted to the top corner of the door to
keep it from tearing the fabric.
Here's some pictures that oughta help too.
