Solar Power for Sweet Pea
Spring 2017

I bought a 200 watt panel from Continuous Resources for $185. That was only the beginning.

200W 36 Cell 12V Nominal Solar Panel - 5 Busbar Specifications:
    Power: 200 Watt
    5 Busbar
    Monocrystaline
    Vmp: 21.052V
    Voc: 24.335V
    Imp: 9.5A
    Isc: 9.87A
    Maximum System Voltage: 600V
    Module Efficiency: 17.3%
    Temperature Coefficient of Isc:  0.04%/°C
    Temperature Coefficient of Voc: -0.32%/°C
    Temperature Coefficient of Pmax:  -0.41%/°C
    IP67 Rated
    Height: 58.8125 in.
    Width: 26.75 in.
    Thickness: 1.5625 in.

    Shipping Weight:  32 lbs.

Matt Dalley at Continuous Resources, was extremely helpful in providing expertise and really good pricing on everything else I needed for the project. And overall, was much less expensive than other suppliers.

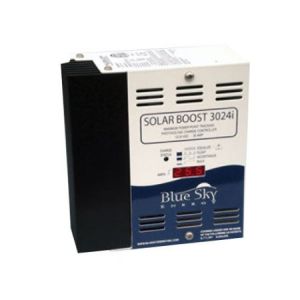

I used a Blue Sky 3024i MPPT Controller which is good for 40 amps.

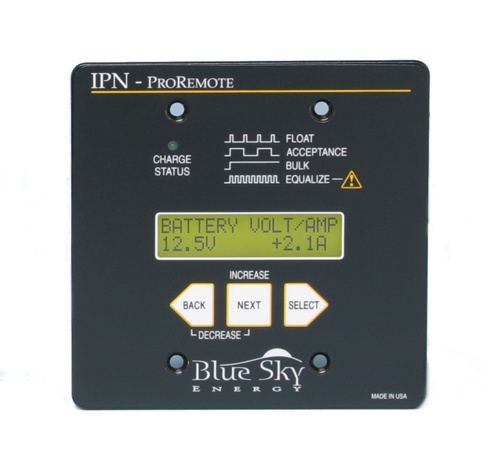

The Blue Sky IMP Remote Controller also displays what is going on.

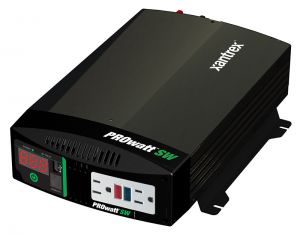

The Xantrex ProWatt 1000 Pure Sine Wave Inverter is plenty of power for us.

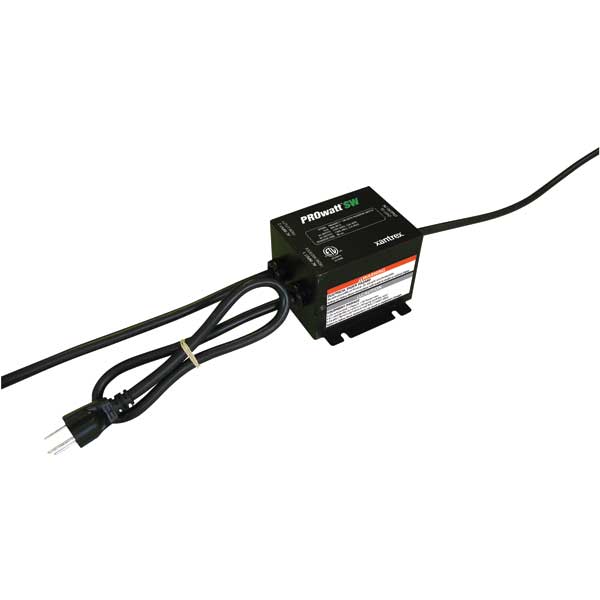

The Automatic Transfer Switch makes it very nice.

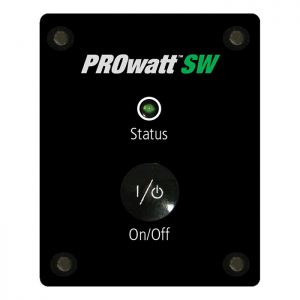

The Remote switch makes if very handy.














Click on any photo below for a larger view

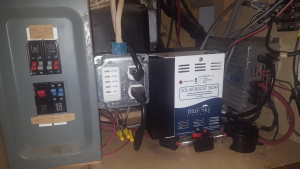

Control Closet

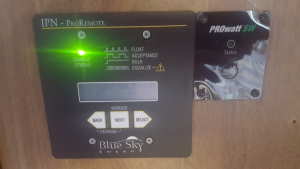

Charge Controller/ Display and
ProWatt Inverter Remote Panels.

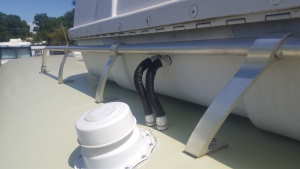

Wiring penetrated the roof right beside the driver side sewer vent which is right above the electrical closet. Wire goes right into the storage pod above that. All wire is secured and water tight with gland nuts.




Inverter resides beneath the permanent bed, snug, outta site, right above the batteries. The remote is very handy.

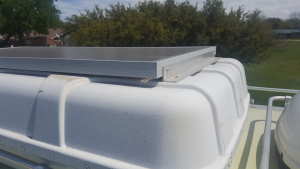

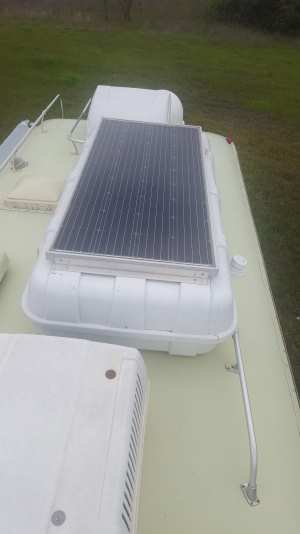

Panel is mounted to aluminum angle which is bolted to a steel barstock inside the storage pod, effectivly clamping it to the width of the lid.



Cost

200 watt monocrystaline panel $185
https://www.continuousresources.com/collections/solar-panels-and-hardware/products/200w-36-cell-12v-nominal-solar-panel-5-busbar

Blue Sky 3024i MPPT Controller $280

Blue Sky IPN Pro Remote $190
https://www.continuousresources.com/products/blue-sky-energy-sb-rvk-s-rv-and-marine-kit-with-shunt?_pos=4&_sid=7bf2a3aba&_ss=r
https://sunforgellc.com/learning-center/

Xantrex 1000W Pure Sine Wave Inverter 806-1210 - PROwatt SW Series $250

Xantrex Automatic Transfer Switch $75

Xantrex Remote Control $20

Wire, breakers, assorted hardware $200

Total       ..............................      about $1200


On 10/17/2020 I took delivery of two Renogy Smart 100A LiFePO4 batteries. $1,400 (discounted for a Prime Day sale)
Renogy
Will Prowse' Review



I used the PD9180ALV Charger/Converter to charge the LiFePO4s.
$280
Progressive Dynamics



I use this Battery Isolation Manager by Battle Born to properly charge the house batteries and protect the chassis batteries from overcharging. It replaces the isolator and combiner. $172
BIM   BIM Original Documentation
Amazon

Jeremy Sanford's System
Installed a Victron BMV700   $140
with the VE Direct to Bluetooth Smart Dongle   $70

The LiFePO4 upgrade cost about $2,000








Unique 12v compressor frig     ||     Vetrifrigo 12v
